NEW for 2022

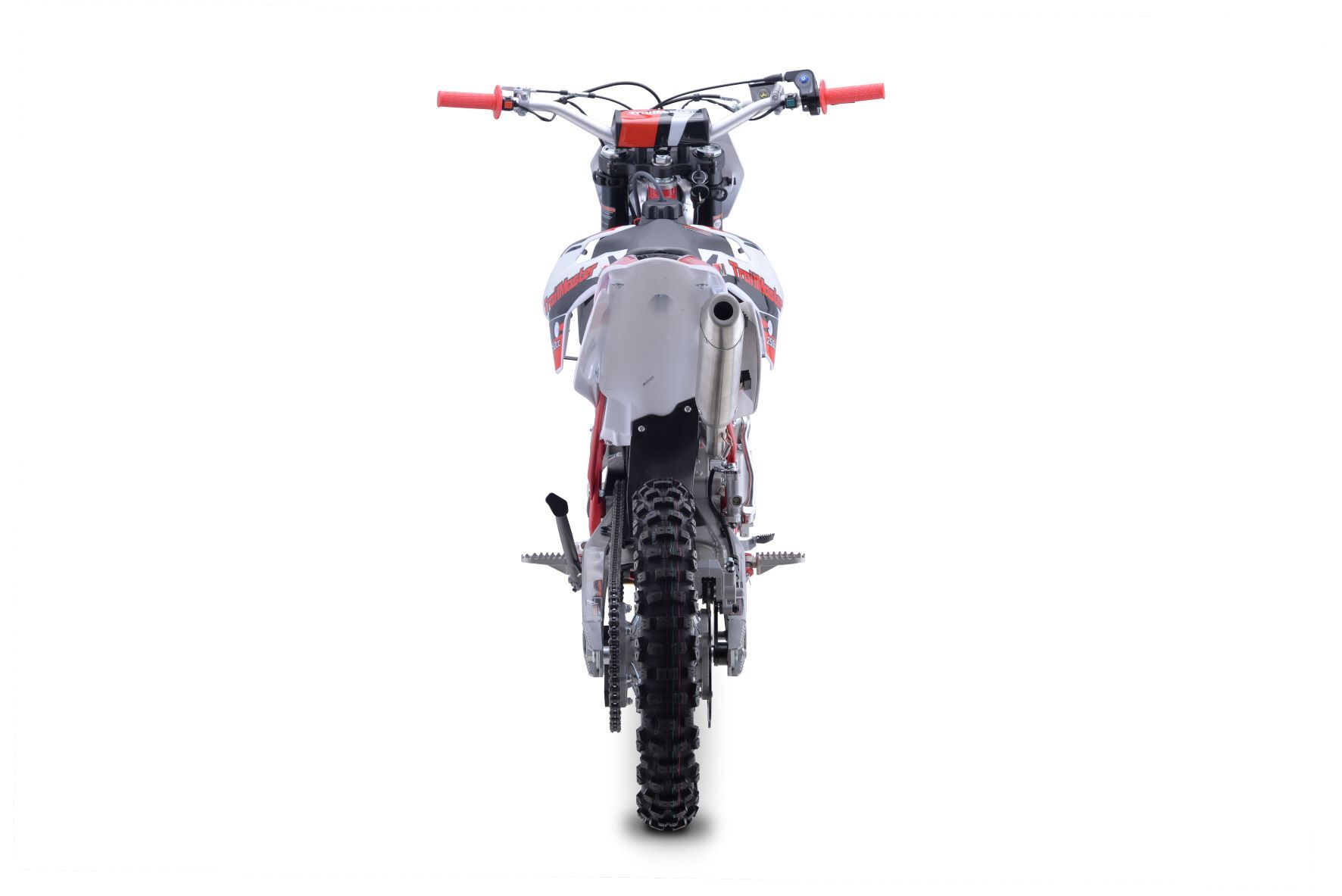

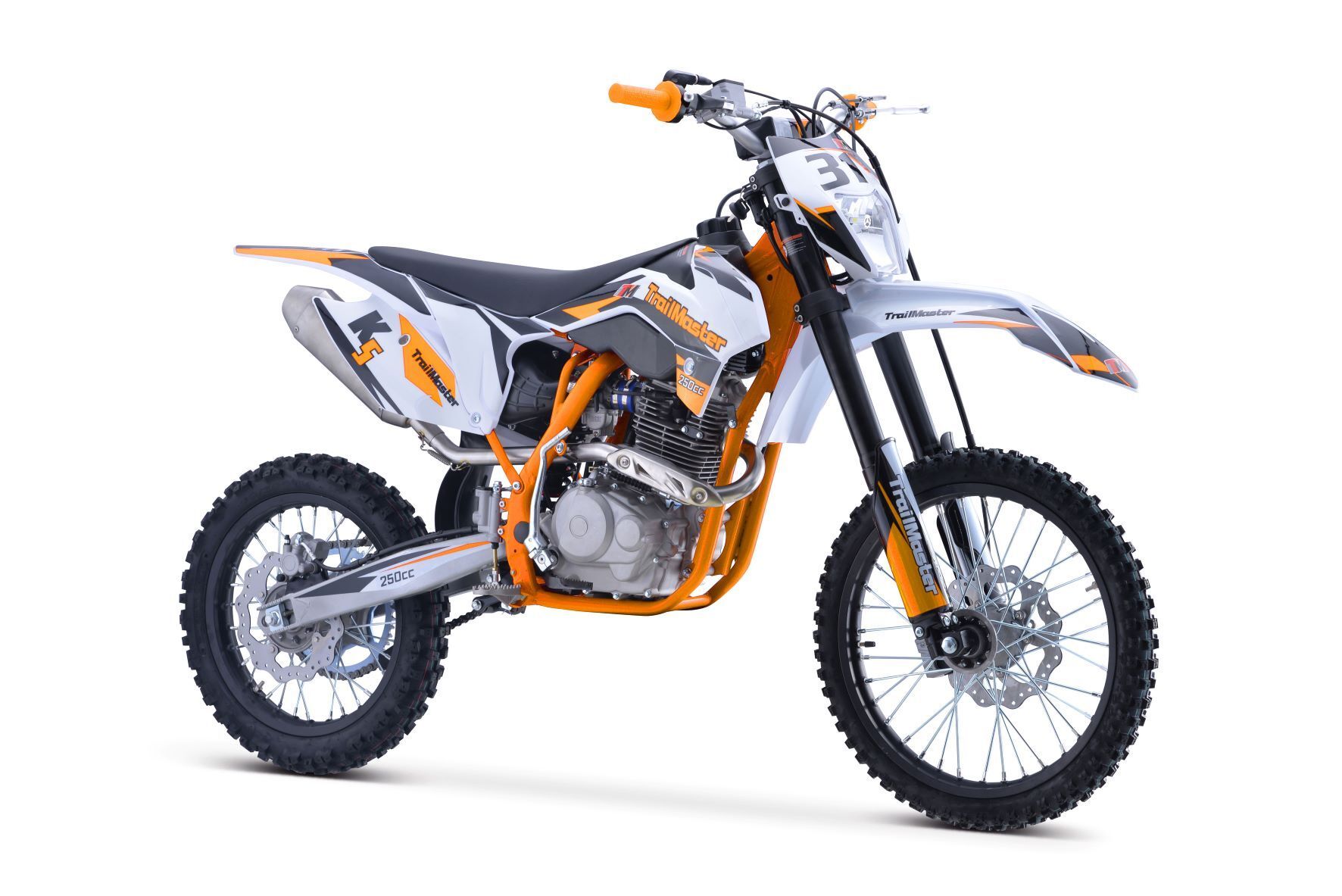

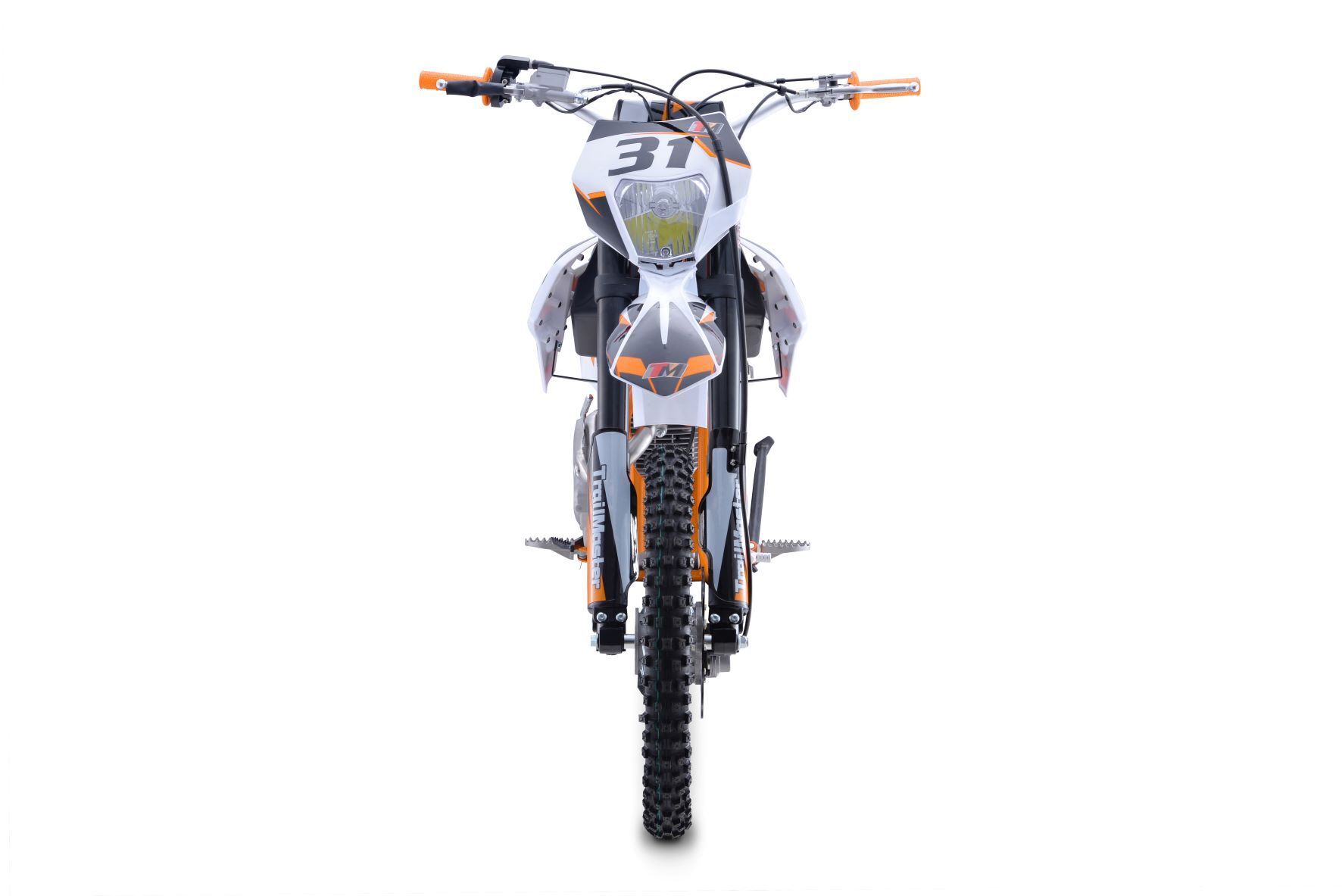

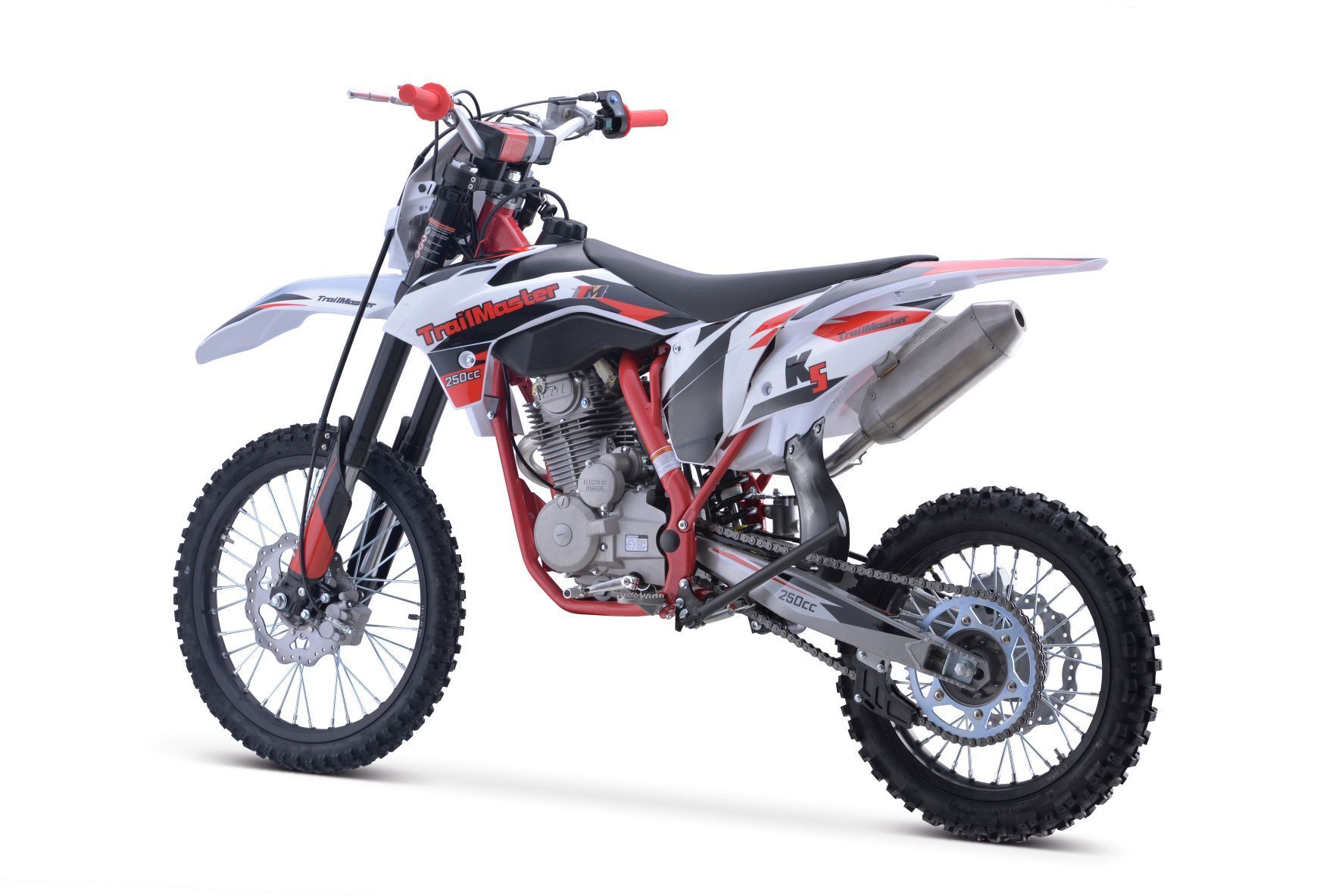

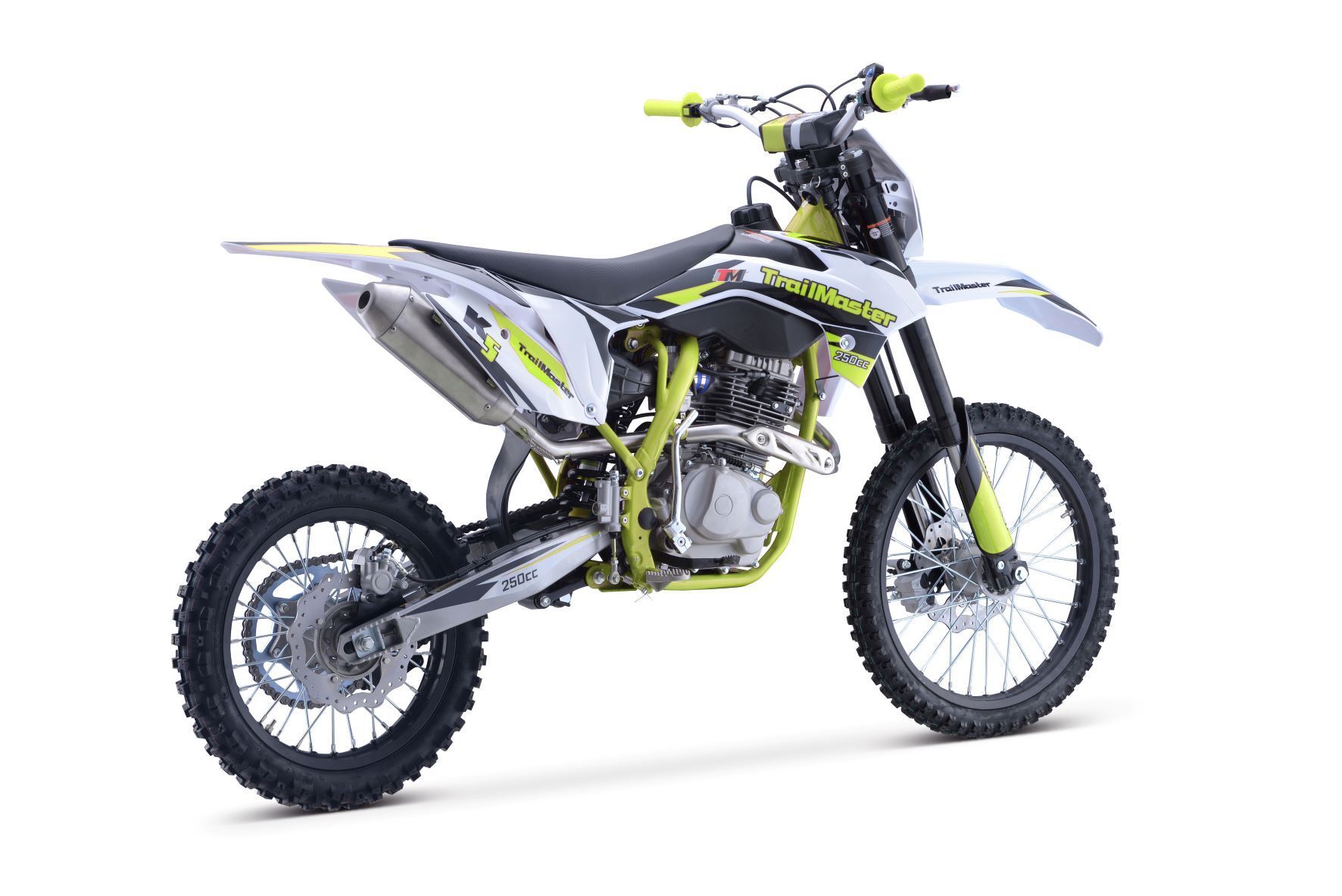

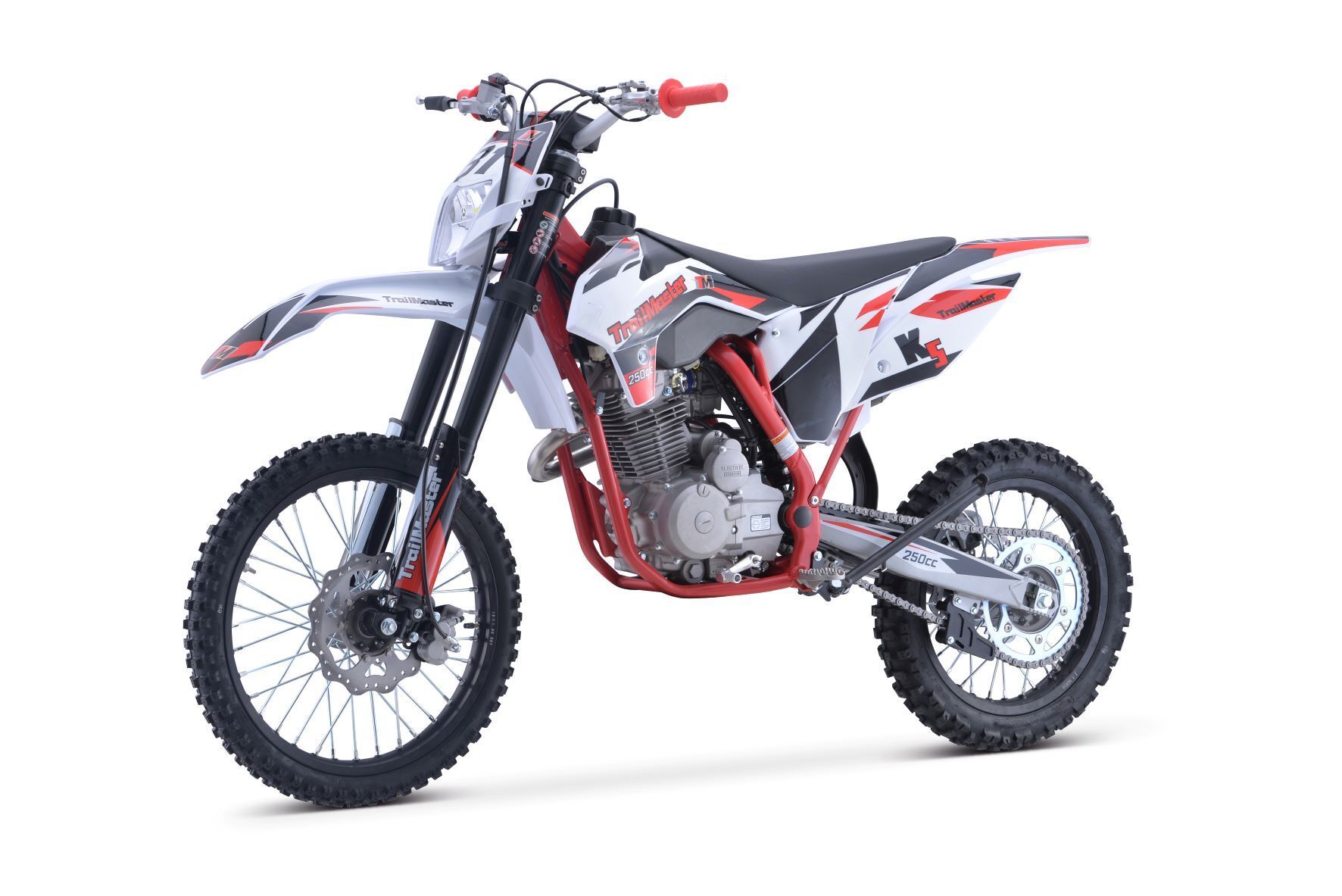

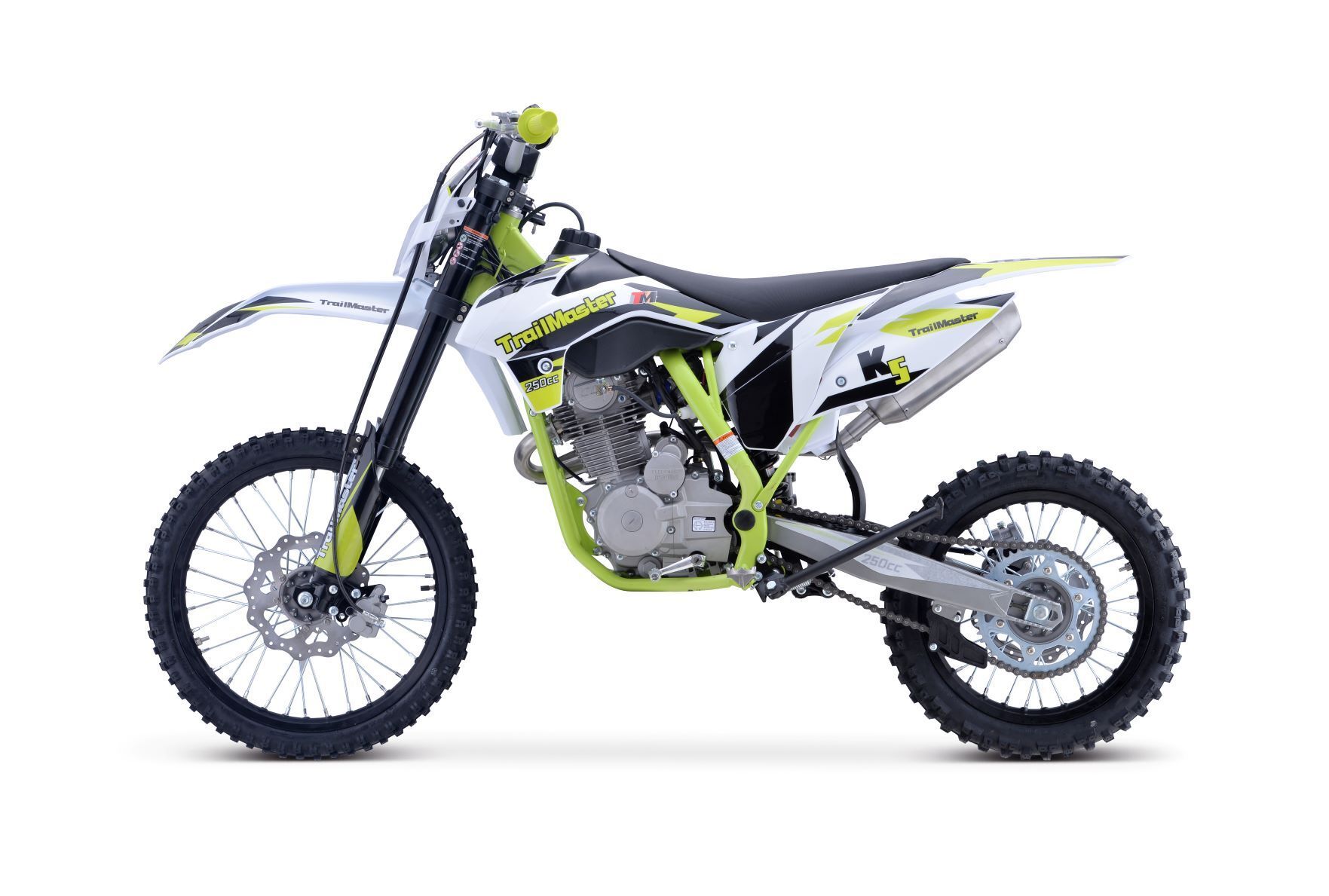

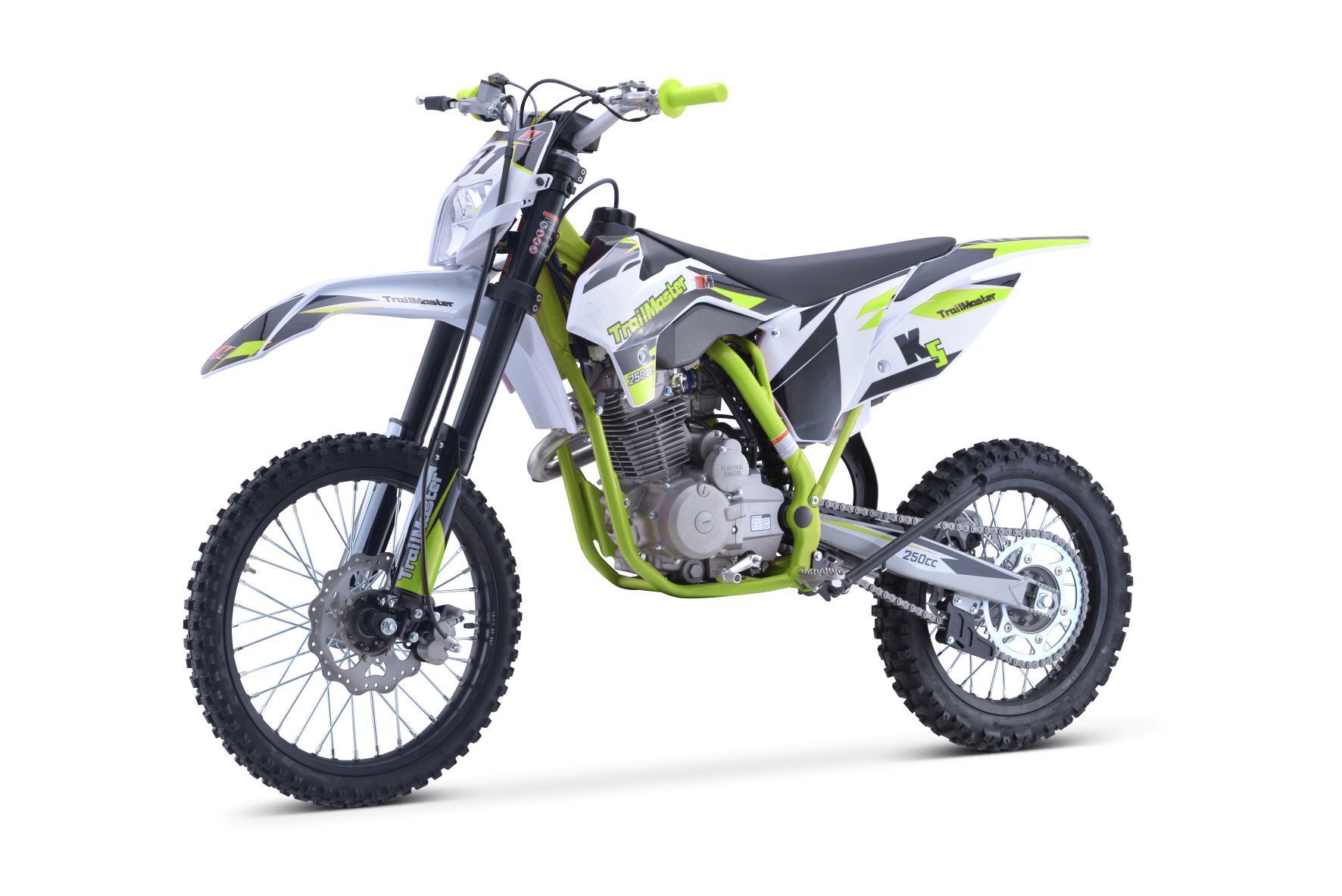

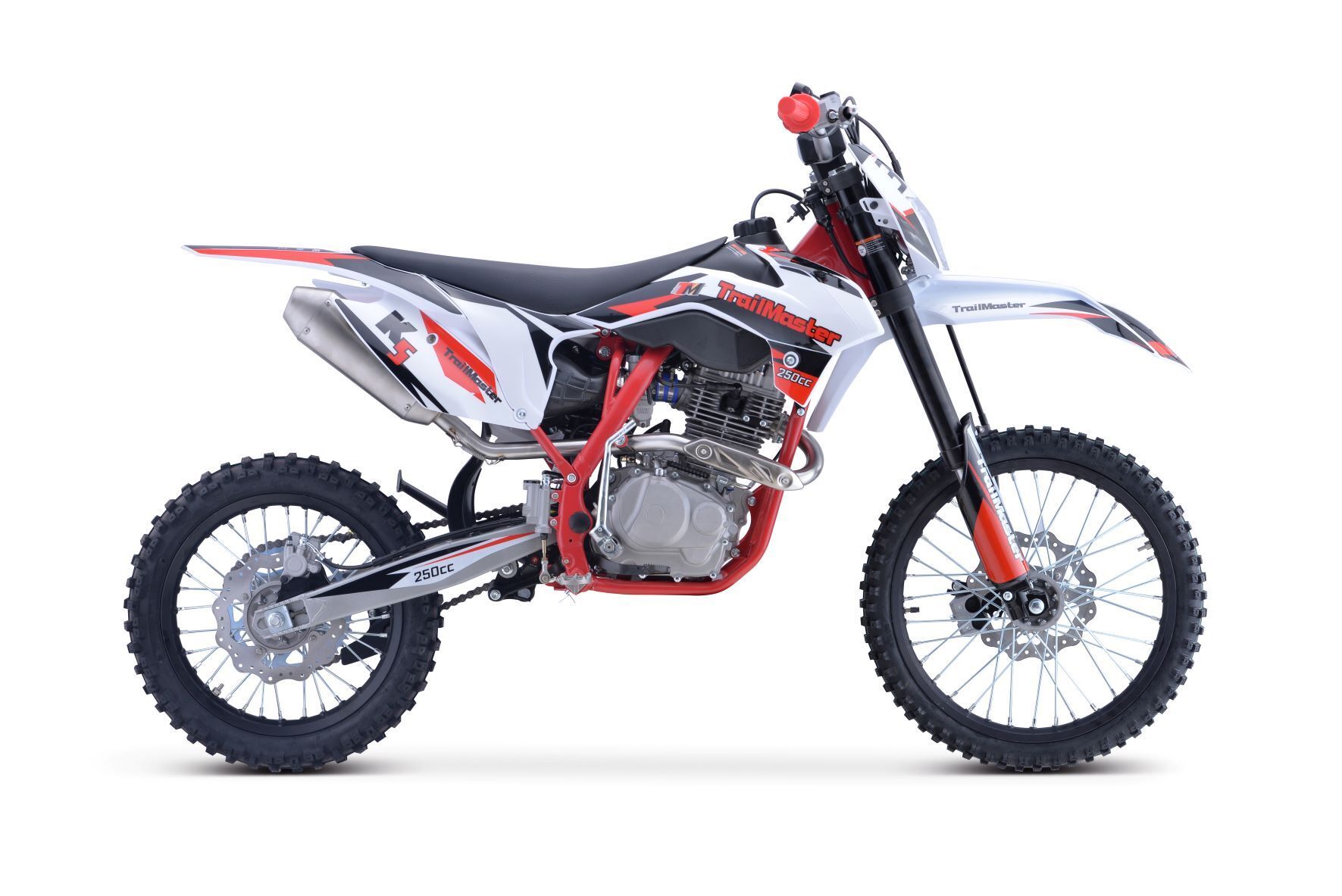

Trailmaster TM31

POWER SYSTEM

Engine Type ZSCB250D-G, Single Cylinder, 4-Stroke, Air Cooled

Displacement 223 ml

Max Power 12/7000 kw/r/min

Max Torque 17.5/5500 N.m/r/min

Compression Ratio 9.3~9.9:1

Shift Type Manual Wet Multi-Plate, 1-N-2-3-4-5, 5-Gears

Bore and Stroke 65.5 x 62.2 mm

Min. Fuel Consumption ≤354(g/Kw.h)

Start Type Electric & Kick Start

Carburetor PE28

Ignition  Digital CDI

Transmission #520 Chain, FT: 13T/RR: 47T Sprocket

PERFORMANCE

Front Fork Φ51*Φ54-830mm Inverted Hydraulic Forks, 150mm Travel

Rear Shock 450mm Spring Pre-load None-Adjustable Shock

Front Wheel Aluminum Rim, Gravity Cast Hub, FT: 1.6 x 19

Rear Wheel Aluminum Rim, Gravity Cast Hub, RR: 2.15 x 16

Front Tires 70/100-19

Rear Tires 90/100-16

Front Brake Dual Piston Caliper, 240mm Disc

Rear Brake Single Piston Caliper, 240mm Disc

DETAILS

Frame Lightweight ,Steel Tube Frame

Swing-Arm Tube High Strength Steel Swingarm; L=560mm

Handle Bar Tapered Aluminum #6061

Overall Size 78"X32"X45.7"/1980x810x1160 mm

Wheel Base 53.1"/1350 mm

Seat Height 34.6"/880 mm

Ground Clearance 13"/330 mm

Fuel Capacity 7.5 L / 2 Gal.

N.W 231lbs/105KG

G.W 297lbs/135KG
