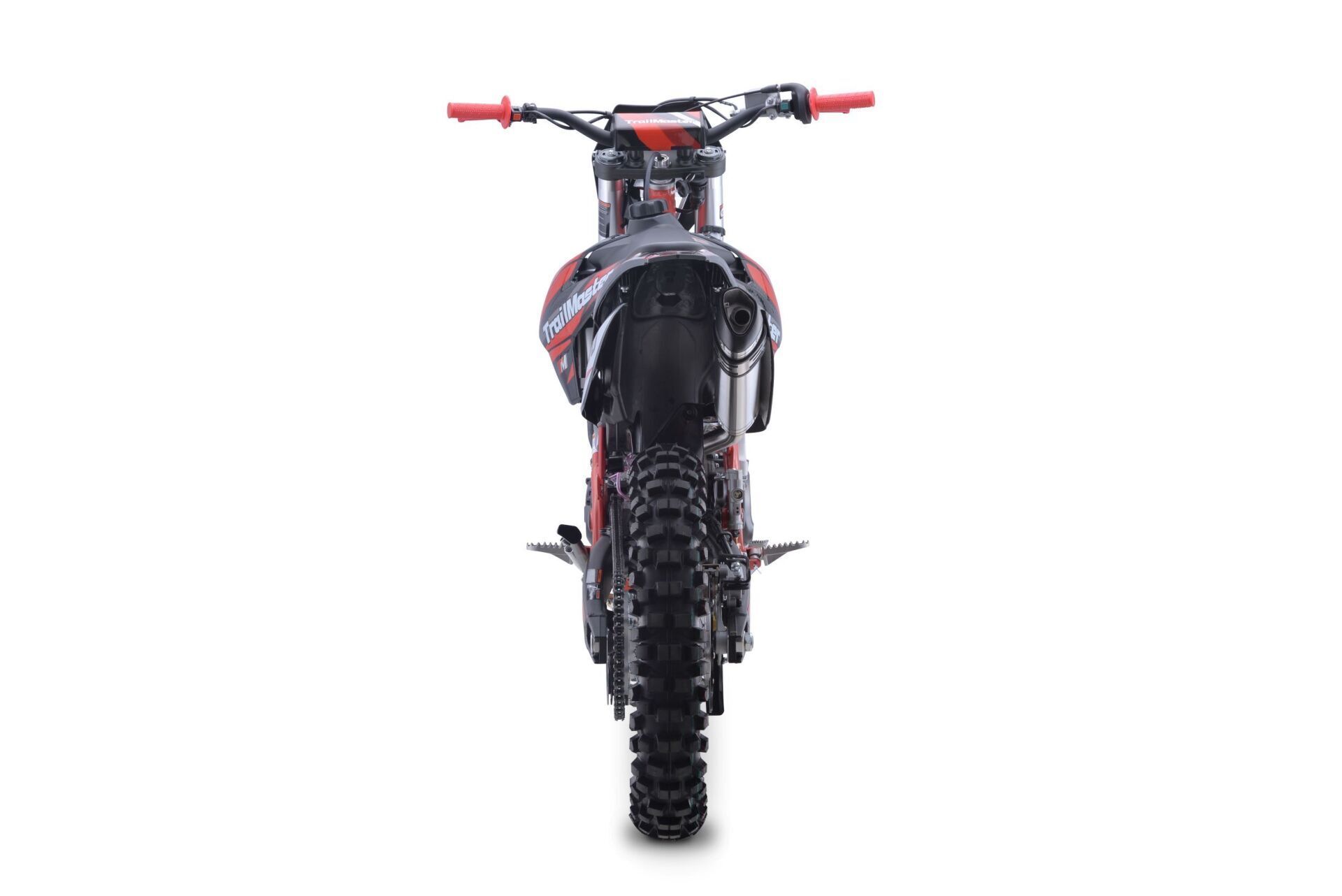

  • The back of a red and black dirt bike on a white background.

    Slide title

    Write your caption here
    Button

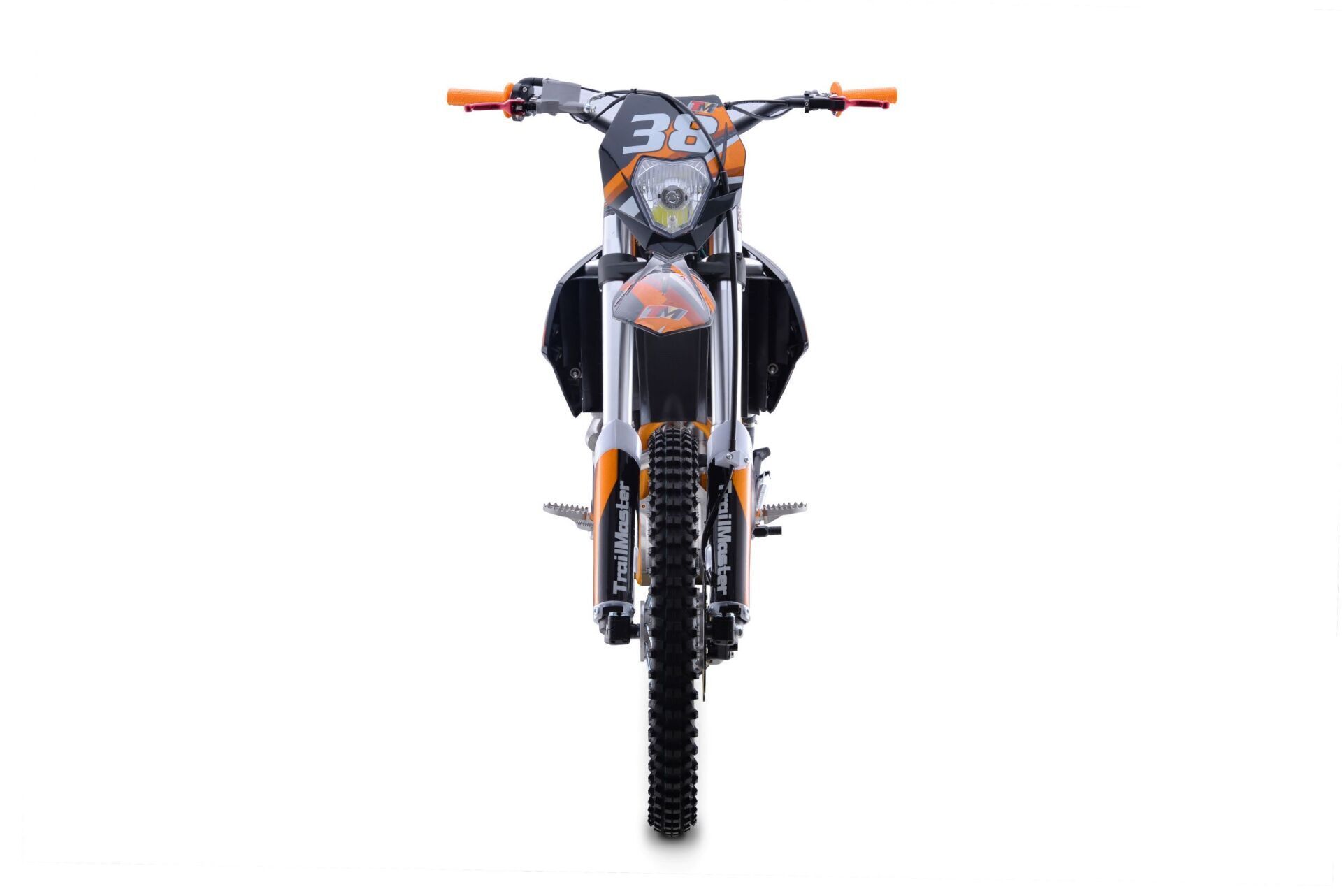

  • The front of a dirt bike is shown on a white background.

    Slide title

    Write your caption here
    Button

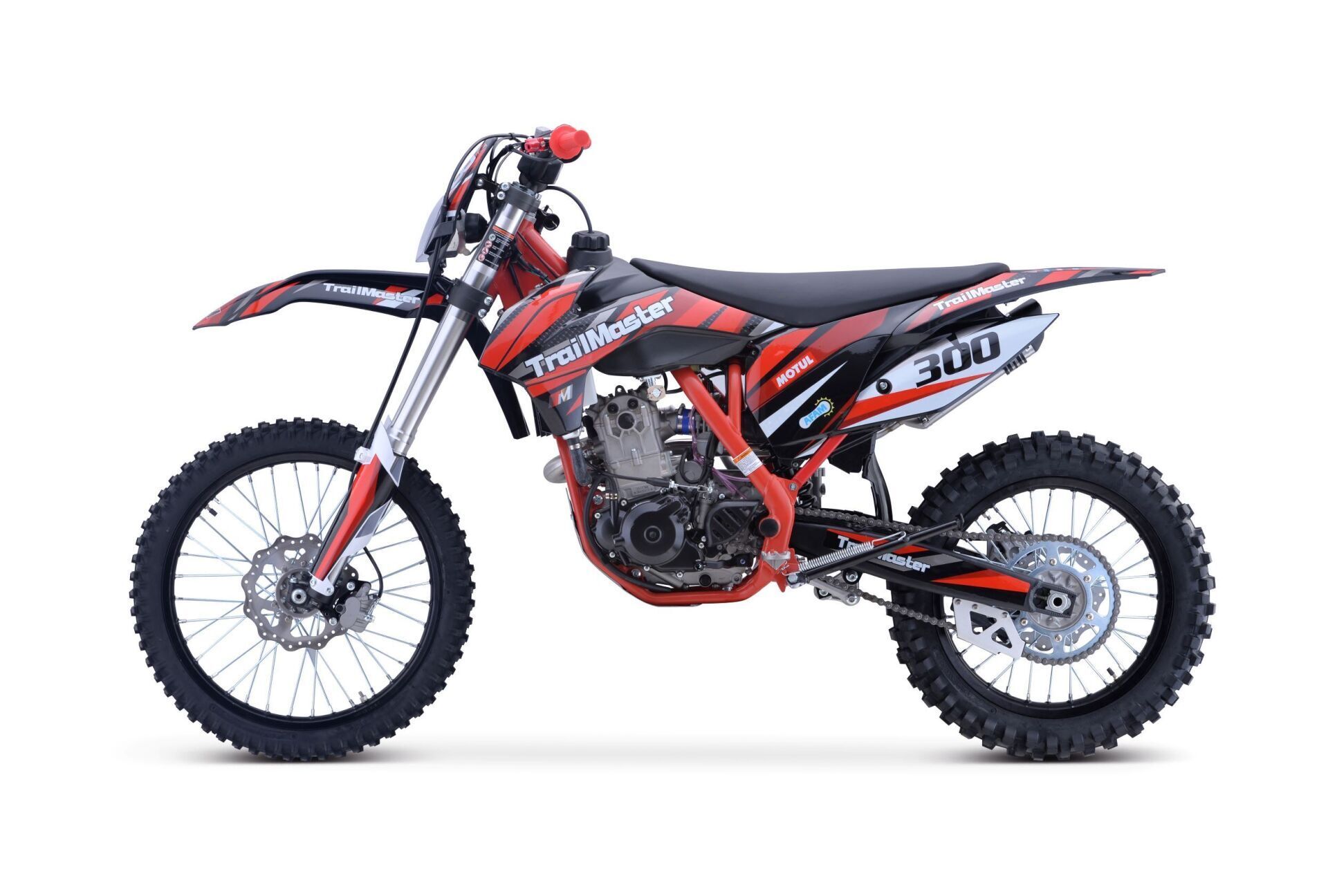

  • A red and black dirt bike on a white background.

    Slide title

    Write your caption here
    Button

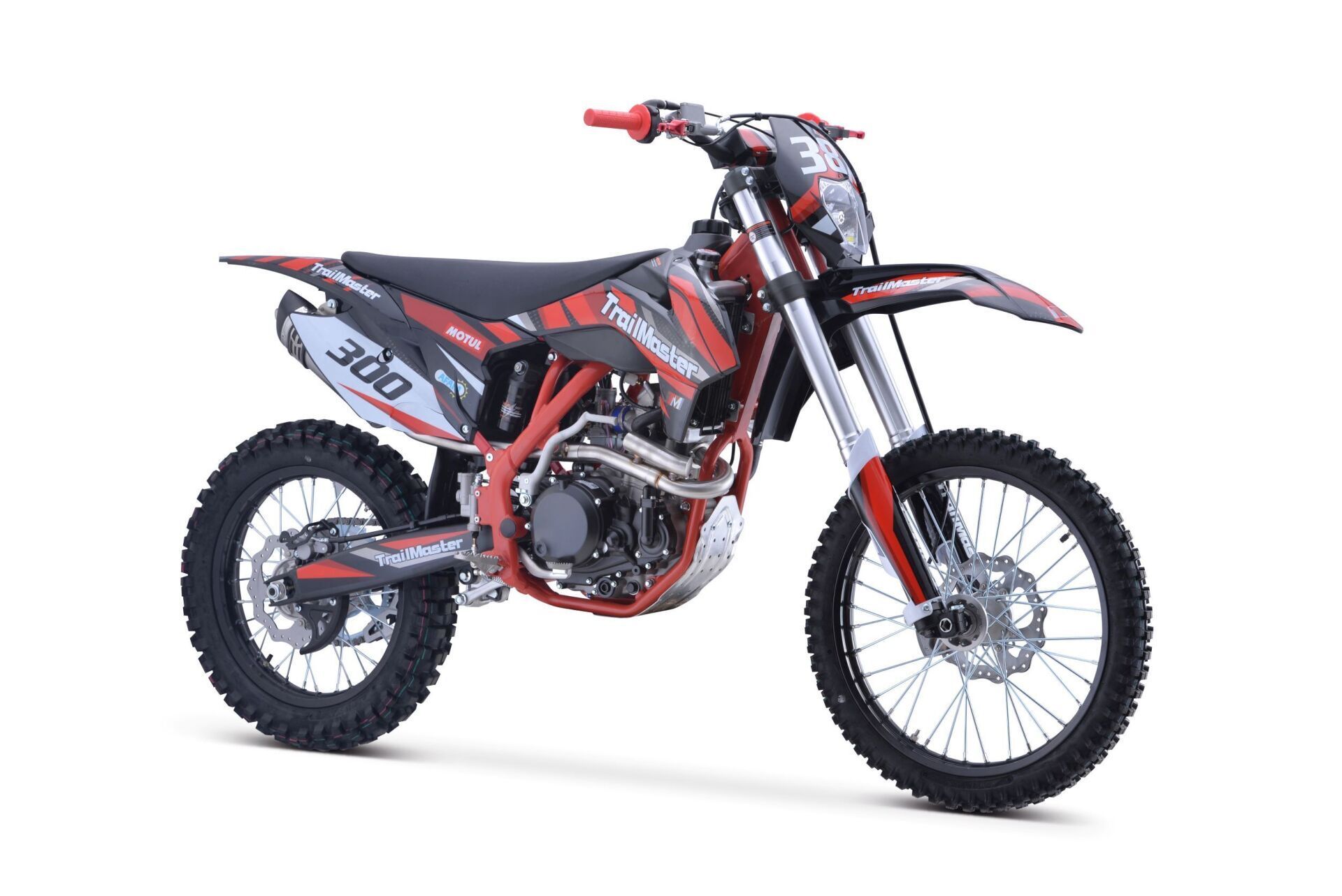

  • A red and black dirt bike on a white background.

    Slide title

    Write your caption here
    Button

NEW for 2022!   ****special order only, not in stock****

Trailmaster TM38



POWER SYSTEM

Engine Type NC298, Single Cylinder, 4-Stroke, 4-Valve, Liquid Cooled, SOHC, Balance Shaft

Displacement 298 ml

Max Power 23KW / 9000rpm - 31Hp

BorexStroke 82 x 53.6 mm

Lubrication Pressure and Splash

Shift Type Wet multi disc clutch, International Gear Pattern,6-Speed

Start Type Electric & Kick Start

Carburetor PWK34 Competition Carb.

Ignition  Digital CDI

Drive Train #520 Chain, FT: 13T/RR: 51T Sprocket


PERFORMANCE

Front Fork Φ54*Φ60-940mm Inverted Hydraulic Dual Adjustable Forks, 300mm Travel

Rear Shock 480mm Dual Adjustable Shock with Ballonet, 120mm Travel

Front Wheel 7116 Aluminum Rim, Gravity Cast Hub, FT: 1.6 x 21

Rear Wheel 7116 Aluminum Rim, Gravity Cast Hub, RR: 2.15 x 18

Front Tires 80/100-21

Rear Tires 110/100-18

Front Brake Dual Piston Caliper, 240mm Disc

Rear Brake Single Piston Caliper, 240mm Disc


DETAILS

Frame Central Tube High Strength Steel Frame

Swing-Arm Forged Aluminum Swingarm,L=590mm

Handle Bar Tapered Aluminum #7075

Overall Size 86.6"X33.9"49.2"/2200x860x1250mm

Wheel Base 59"/1500 mm

Seat Height 37"/940 mm

Ground Clearance 11.8"/300 mm

Fuel Capacity 6.5 L / 1.72 Gal.   N.W 234lbs/117KG   G.W 326lbs/148KG
